| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | W-Nr 1.4418, Z8CND17-04, DIN X4CrNiMo16-5-1, SS S165M |
| Certification : | SGS, TUV, BV, ISO, MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 45000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

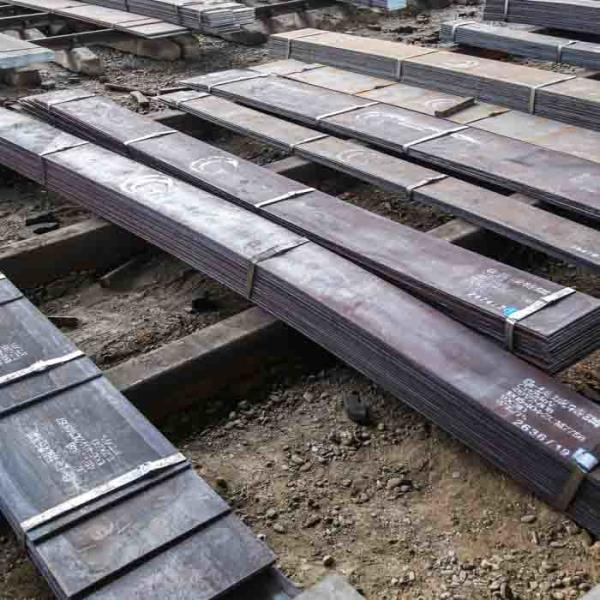

1.4418 DIN X4CrNiMo16-5-1 Stainless Steel Flat Bar Z8CND17-04 SS S165M Plate
Size Range
Round bar / Wire rod (Diameter): 3.0 mm to 500 mm | |
Square bar / Flat bar: 3.5 mm to 500 mm | |
Forging piece: Stepped shafts with flanks/discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. | |
Heavy/middle plate via hot rolled: T4.5 - 100 mm X W5 - 1000 mm X L1000-10000 mm | |
Sheet steel via cold rolled: T0.5 - 10.0 mm X W5 - 1000 mm X L1000 - 10000 mm | |
Steel strip via cold rolled: T0.5 - 5.0 mm X W5 - 1000 mm X L (or in coil form) | |
Length: Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
X4CrNiMo16-5-1/1.4418 | Z8CND17-04 | SS S165M |
| DIN EN 10088-3-2014 | -- | -- |
C(％): ≤0.06 N(%): ≥0.02 | C(％): ≤0.05 N(%): ≤0.03 | C(％): ≤0.05 Si(％): ≤1.00 Mn(％): ≤1.50 P(％)≤: 0.04 S(％)≤: 0.03 Cr(％): 15.0~17.0 Ni(％): 4.0~6.0 Mo(％): 0.80~1.50 |
Mechanical Properties
X4CrNiMo16-5-1/1.4418 Stainless Steel Flat Bar Mechanical Properties
+QT 760
Tensile strength,Rm/MPa:760~960
Yield strength,Rp/MPa: ≥550
Elongation/%: ≥16
Impact, KV /J: ≥70
+QT 840
Tensile strength,Rm/MPa:840~1100
Yield strength,Rp/MPa: ≥660
Elongation/%: ≥14
Impact, KV /J: ≥55
+QT 900
Tensile strength,Rm/MPa:900~1150
Yield strength,Rp/MPa: ≥700
Elongation/%: ≥10
Impact, KV /J: ≥60
