Quality Solutions. Trusted Partners.
4 Years
| Ask Lasest Price | |
| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | C85W, W-Nr 1.1830, W1C-8, UNS T72301, SK85, STC5, SK5, A686 Type W1-8 Grade A |
| Certification : | SGS, TUV, BV, ISO, MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 45000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

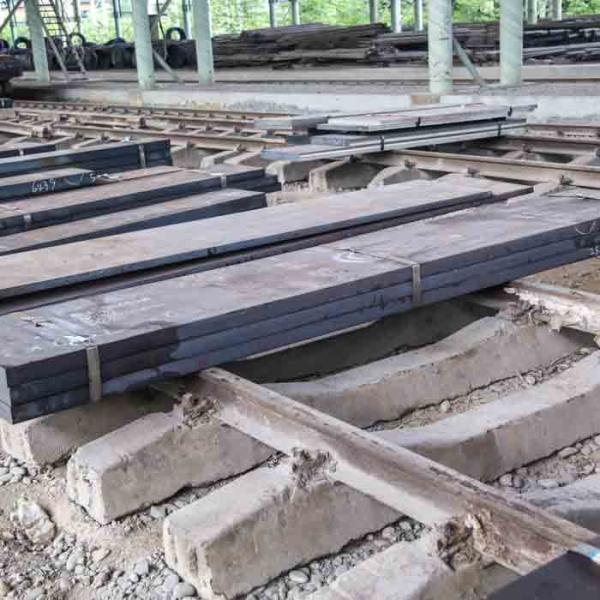

W1C-8 UNS T72301 Alloy Steel Plates C85W W-Nr 1.1830 SK85 STC5 Metal Flat Plate
Size Range

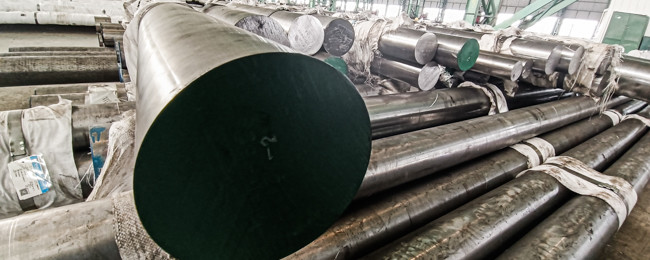

| Round bar / Wire rod (Diameter): | 3.0 mm to 1000 mm |
| Square bar / Flat bar: | 3.0 mm to 1000 mm |
| Forging piece: | Stepped shafts with flanks/discs /tubes |
| Heavy/middle plate via hot rolled: | T5 - 500 mm X W5 - 1000 mm X L1000-10000 mm |
Sheet steel via cold rolled: | T0.5 - 10.0 mm X W5 - 1000 mm X L1000 - 10000 mm |
Steel strip via cold rolled: | T0.5 - 5.0 mm X W10 - 1000 mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
W1C-8/T72301 | C85W/1.1830 | SK85 | STC5 |
| ASTM 686(2004) | DIN 17350(1980) | JIS G4401(2006) | KS D3751(1999) |
C(％): 0.80~0.90 Ni(％): ≤0.20 V(%): ≤0.10 | C(％): 0.80~0.90 Ni(％): -- | C(％): 0.80~0.90 Ni(％): ≤0.25 | C(％): 0.80~0.90 Ni(％): ≤0.25 |
Mechanical Properties
W1C-8/T72301 Alloy Steel Plates Mechanical Properties
| Tensile strength, Rm/MPa: | 1680 |
| Yield strength, Rp/MPa: | 1500 |
| Elongation/%: | ≥3.50 |
| Reduction of area, ψ/%: | -- |
| Impact, KV /J: | -- |
| Hardness HBW: | ≤222 |
