| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | X35CrWMoV5, W-Nr 1.2605, AISI H12, JIS SKD62, Z35CWDV5, BH12, UNS T20812, A681 Type H12 |
| Certification : | SGS, TUV, BV, ISO, MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 50000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |
UNS T20812 A681 Type H12 Alloy Round Bar X35CrWMoV5 W-Nr 1.2605 Solid Round Bar
Size Range
Round bar / Wire rod (Diameter): 10.0 mm to 1000 mm | |
Square bar / Flat bar: 10.0 mm to 1000 mm | |

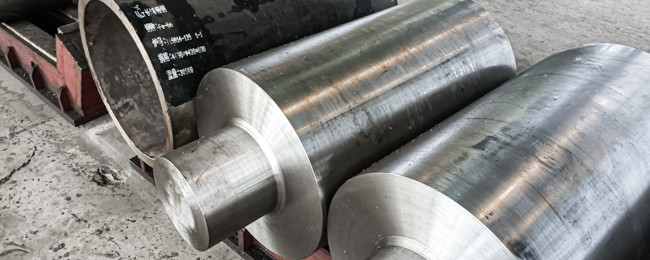

Forging piece: Stepped shafts with flanks/discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. | |
Heavy/middle plate via hot rolled: T5 - 500 mm X W5 - 1000 mm X L1000-10000 mm | |
Sheet steel via cold rolled: T0.3 - 10.0 mm X W5 - 1000 mm X L1000 - 10000 mm | |
Steel strip via cold rolled: T0.3 - 10.0 mm X W5 - 1000 mm X L (or in coil form) | |
Length: Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
X35CrWMoV5/1.2605 | UNS T20812/AISI H12/ A681 Type H12 | SKD 62 |
| DIN EN ISO 4957-2018 | ASTM A681-2008(R2015) | JIS G 4404-2015 |
C(％): 0.32~0.40 W(%): 1.1~1.6 V(%): 0.2~0.5 | C(％): 0.30~0.40 W(%): 1.0~1.7 V(%): 0.2~0.5 Ni+Cu(%): ≤0.75 | C(％): 0.32~0.40 W(%): 1.0~1.6 V(%): 0.2~0.5 |
| BH12 | ||
| BS 4659-1989 | ||
C(％): 0.30~0.40 W(%): 1.25~1.75 V(%): ≤0.5 Cu(%): ≤0.2 |
Mechanical Properties
X35CrWMoV5/1.2605 Alloy Round Bar Mechanical Properties
| Tensile strength, Rm/MPa: -- | |
| Yield strength, Rp/MPa: -- | |
| Elongation, A/%: ≥ 20 | |
| Reduction of area, ψ/%: -- | |
| Impact, KV /J: -- | |
| Annealed hardness HBW: ≤ 229 |
