| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | 32CrMoV12-10, W-Nr 1.7765 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 50000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

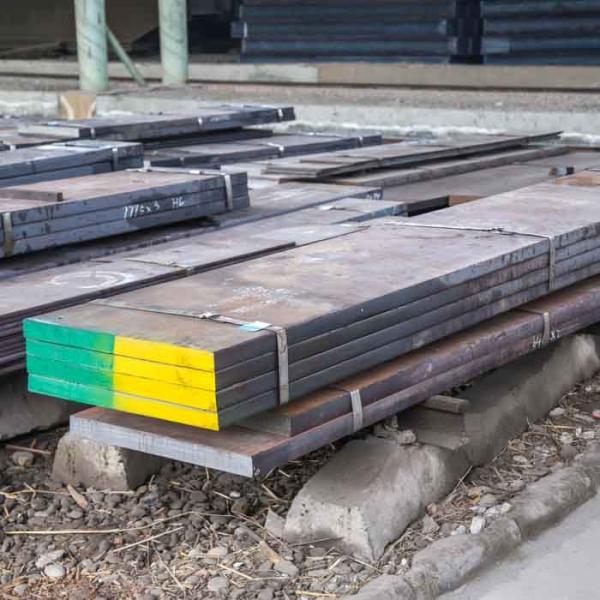

32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
Describe
32CrMoV12-10 steel is a high-quality cold work tool steel, which
belongs to high-quality high-carbon alloy tool steel. Oil quenched
and tempered to 300 HB. 32CrMoV12-10 steel annealed delivery
hardness is less than 250HB.
Size Range
| Round bar / Wire rod (Diameter) | 5.0 mm to 1000 mm |
| Square bar / Flat bar | 5.0 mm to 1000 mm |
| Forging piece | Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. |
| Heavy/middle plate via hot rolled | T5 - 200 mm X W10 - 1000 mm X L1000-12000 mm |
| Sheet steel via cold rolled: | T5 - 4 mm X W6 - 1000 mm X L1000 - 1000 mm |
| Steel strip via cold rolled: | T5 - 5.0 mm X W5 - 200 mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
| Grade | 32CrMoV12-10/1.7765 |
| Standard | WL 1.7765-2008 |
| Chemical Composition (weight%) |
|
Mechanical Properties
32CrMoV12-10 / 1.7765 Alloy Flat Bar Mechanical Properties
| Tensile strength, Rm/MPa: | ≥1080 |
| Yield strength, Rp/MPa: | ≥740 |
| Elongation/%: | ≥10 |
| Reduction of area, ψ/%: | -- |
| Impact, KV /J: | -- |
| Hardness/HBW: | Quenched and Tempered 265~320 |
