| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | C6Cr17, X8Cr17, W-Nr 1.4016, BS 430S15, NF Z8C17 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 50000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

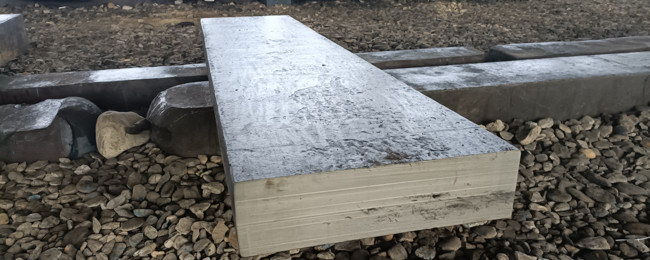

C6Cr17 X8Cr17 Stainless Steel Flat Bar W-Nr 1.4016 BS 430S15 Wires
Describe
The 1.4016 grade is an economical stainless steel that is not suitable for welding and has low ductility and low strength properties. It is used in the oil industry in tanks, accessories, food, textile, automotive, food and household equipment industries.
Size Range
| Round bar / Wire rod (Diameter) | 5.0mm to 800mm |
| Square bar / Flat bar | 5.0mm to 800mm |
| Forging piece | Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. |
| Heavy/middle plate via hot rolled | T5 - 200mm X W10 - 1500mm X L1000-12000mm |
| Sheet steel via cold rolled: | T5 - 4mm X W6 - 1000mm X L1000 - 1000mm |
| Steel strip via cold rolled: | T5 - 5.0mm X W5 - 190mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
| Grade | C6Cr17/1.4016 | BS 430S15 | NF Z8C17 |
| Standard | IN EN 10263-5-2018 | -- | -- |
| Chemical Composition (weight%) | C(％): ≤0.08 Si(％): ≤1.0 Mn(％): ≤1.0 S(％)≤: 0.03 Ni(％): -- | C(％): ≤0.10 Si(％): ≤0.8 Mn(％): ≤1.0 S(％)≤: 0.03 Ni(％): ≤0.5 Cu(％): ≤0.3 Ti(％): ≤0.1 Nb(％): ≤0.2 | C(％): ≤0.8 Si(％): ≤0.75 Mn(％): ≤0.75 S(％)≤: 0.015 Ni(％): -- |
Mechanical Properties
C6Cr17/1.4016 Stainless Steel Mechanical Properties
| Tensile strength, Rm/MPa: | 400~630 |
| Yield strength, Rp/MPa: | ≥240 |
| Elongation/%: | ≥20 |
| Reduction of area, ψ/%: | ≥60 |
| Impact, KV /J: | -- |
| Hardness/HB: | ≤200 |
