| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | AMS 5600, UNS S30200, AMS 5600E |
| Certification : | SGS, TUV, BV, ISO, MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 50000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

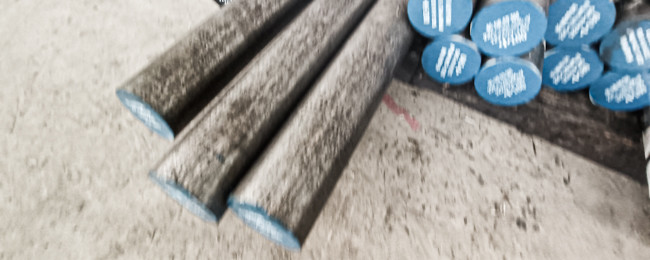

AMS 5600 Stainless Steel Round Bar UNS S30200 Sheet Steel
Size Range
| Round bar / Wire rod (Diameter): | 3.0mm to 300mm |
| Square bar / Flat bar: | 3.0mm to 500mm |
| Forging piece: | Stepped shafts with flanks/discs /tubes |
| Heavy/middle plate via hot rolled: | T5 - 500mm X W10 - 1500mm X L1000-11000mm |
Sheet steel via cold rolled: | T0.5 - 5mm X W5 - 1000mm X L1000 - 1000mm |
Steel strip via cold rolled: | T0.5 - 5.0mm X W5 - 180mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
| Grade | AMS 5600 | UNS S30200 |
| standard | SAE AMS 5600E-2007 | SAE J405-2018 |
| Chemical Composition (weight%) |
| C(％): ≤0.15 Si(％): ≤0.75 Mn(％): ≤2.0 P(％)≤: 0.045 S(％)≤: 0.030 Cr(％): 17.0~19.0 Ni(％): 8.0~10.0 Mo(％): -- N(％): ≤ 0.1 |
Mechanical Properties
AMS 5600 Stainless Steel Round Bar Mechanical Properties
| Tensile strength, Rm/MPa: | ≤800 |
| Yield strength, Rp/MPa: | -- |
| Elongation/%: | -- |
| Reduction of area, ψ/%: | -- |
| Impact, KV /J: | -- |
| Annealed hardness HB: | ≤241 |
