| Brand Name : | PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL |
| Model Number : | AMS 5655, ASTM 422, UNS S42200 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 55000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 30-60 days |

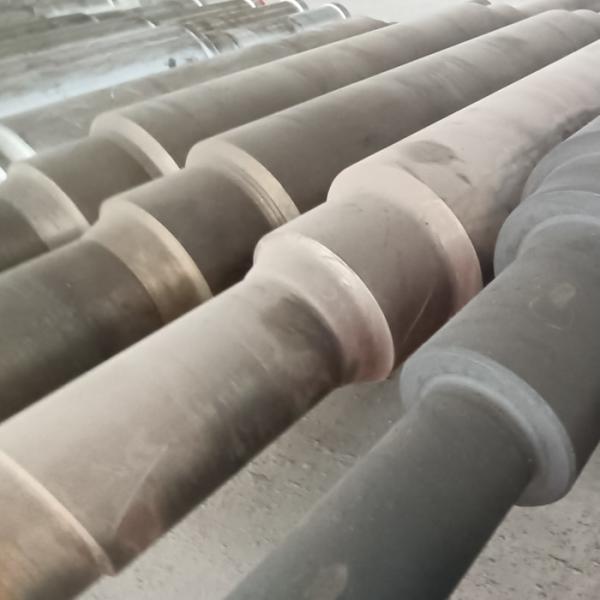

AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200
Description
AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200 is characterized by martensitic crystal structure, which gives AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200 good mechanical properties, such as excellent creep-rupture and resistance to scaling at temperatures up to 649° C.
All of AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
|
Products Details
AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
C(％): 0.45 Si(％): 0.65 Mn(％): 0.55 Cr(％): 12.5 Ni(％): — Mo(％): 0.55 Co(％): — W(％): — Al(％): — Cu(％): — Ti(％): — V (％):0.30 | Condition of heat treatment: Annealed Tensile strength, σb ≥/MPa: - Yield strength, σ0.2 ≥/MPa:- Elongation, δ ≥(％): - Reduction of area, ф ≥(％): - Hardness | HRS: ≤248 |
Condition of heat treatment: T, middle tempered Tensile strength, σb ≥/MPa: - Yield strength, σ0.2 ≥/MPa:- Elongation, δ ≥(％): - Reduction of area, ф ≥(％): - Hardness | HRS: ≤285 | |
| Condition of heat treatment: HT 1022℃ ~ 1050℃ air or oil cooled,
≥620℃ X 2H, tempered Tensile strength, σb ≥/MPa: 965 Yield strength, σ0.2 ≥/MPa: 760 Elongation, δ ≥(％): 13.0 Reduction of area, ф ≥(％): 30.0 Hardness | HRS: 302 ~ 352 | |
| Condition of heat treatment: H 1022℃ ~ 1050℃ air or oil cooled,
≥677℃ X 2H, tempered Tensile strength, σb ≥/MPa: 825 Yield strength, σ0.2 ≥/MPa: 585 Elongation, δ ≥(％): 17.0 Reduction of area, ф ≥(％): 35.0 Hardness | HRS: 241 ~ 285 |
Applications:
AMS 5655 Turbine Blade Steel ASTM 422 Steel UNS S42200 is used in the aerospace industry for manufacturing of high-temperature bolting, valves, and valve trim, and also in steam turbines for buckets and blades.
