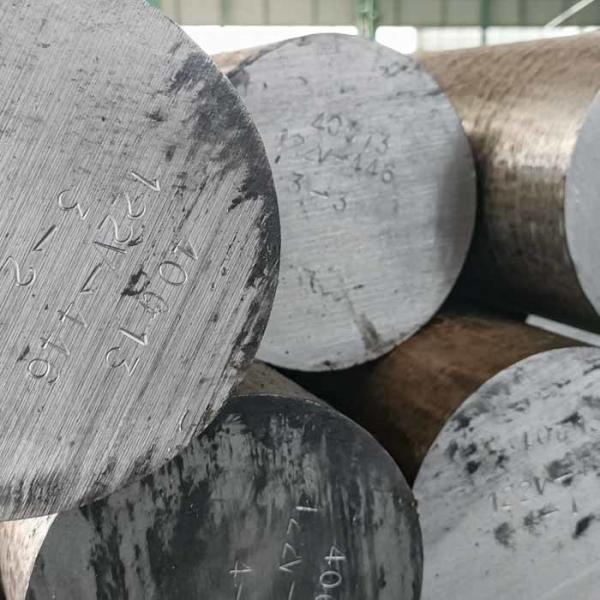

15-5PH Alloy Round Bar
Description
15-5PH Alloy Round Bar is a martensitic precipitation-hardening
stainless steel with approximately 15% Chromium and 5% Nickel.
15-5PH Alloy Round Bar has high strength, high hardness, and
excellent corrosion resistance. Strength can be further increased
by a single low temperature heat treatment. 15-5PH Alloy Round Bar
can be machined in any of the several Thermal Conditions available
to this grade.
All of 15-5PH Alloy Round Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
15-5PH Alloy Round Bar
| Chemical Composition (weight%): | ||||||
| C (％): ≤ 0.07 Si (％): ≤ 1.00 Mn (％): ≤ 1.00 P (％)≤: 0.040 S (％)≤: 0.030 Cr (％): 14.0 ~ 15.5 Ni (％): 3.50 ~ 5.50 Mo (％): - Cu (％): 2.50 ~ 4.50 Nb+Ta (%): 0.15 ~ 0.45 | ||||||
| Mechanical Properties Under Final Heat Treatment: | ||||||
| Condition | Tensile | Yield 0.2% offset | Elongation (%in 2") | Reduction of Area | Brinell Hardness | Rockwell Hardness |
| Ann | 363 Bhn | C33 | ||||
| H900 | 190,000 psi | 170,000 psi | 0.06 | 0.15 | 388 Bhn | C40 |
| H1025 | 155,000 psi | 145,000 psi | 0.08 | 0.27 | 331 Bhn | C35 |
| H1075 | 145,000 psi | 125,000 psi | 0.09 | 0.28 | 311 Bhn | C32 |
| H1150 | 135,000 psi | 105,000 psi | 0.11 | 0.3 | 277 Bhn | C28 |
| H1150-M | 115,000 psi | 75,000 psi | 0.14 | 0.35 | 255 Bhn | C25 |
Applications:
15-5PH Alloy Round Bar is often used in the Aerospace structural
components, Valves, Gears and Shafts, Oil and Gas components,
Nuclear reactor components, etc.
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
|
