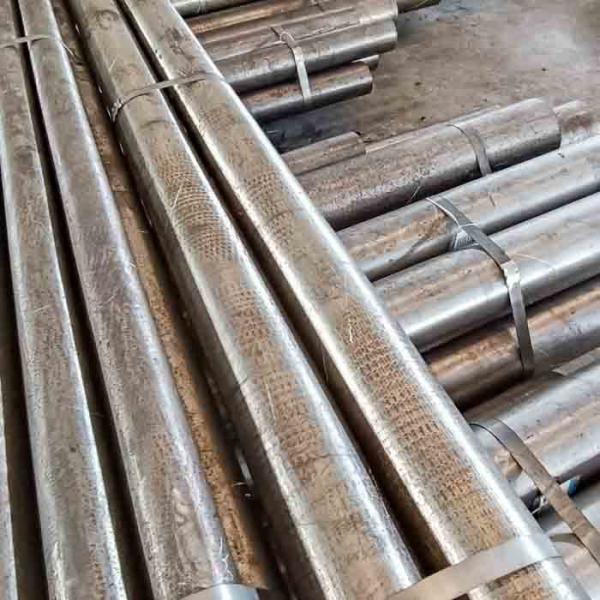

X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel
Description
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel is martensitic stainless steel that is heat resistant. Due to
the low chromium content in the chemical composition, the stainless
steel grade shows limited resistance to corrosion.
All of X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel conform to Military standard, nuclear power. 100% Ultrasonic test
ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Round bar / Wire rod (Diameter): 5.5mm to 800mm
Square bar / Flat bar: 3mm to 800mm
Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Products Details
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel
| Chemical Composition (weight%): | |
| C | 0.18 ~ 0.24 |
| Cr | 11.0～12.5 |
| Ni | 0.30～0.80 |
| Mo | 0.80～1.20 |
| Si | ≤ 0.50 |
| Ti | - |
| P | ≤ 0.025 |
| S | ≤ 0.015 |
| Mn | ≤ 2.00 |
| Other | V 0.20 ~ 0.35 |
| Mechanical Properties Under Final Heat Treatment: | |
| Condition: Quenched and tempered | |
| TS, σb/MPa | 800 ~ 950 |
| YS, σ0.2≥/MPa | 600 |
| EL, δ 5≥(％) | 14.0 |
| Hardness HBW | - |
| Hardness HRB (HRC) | - |
Applications:
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel used most often in the Aircraft construction, Petrochemical
industries, Power industries.
Equivalent Grade
X22CrMoV12-1 X22CrNiMoV12-1 1.4923
X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical
composition of X22CrMoV12-1 Stainless Steel Round Bar X22CrNiMoV12-1 Bar 1.4923
Steel and test the finished products in strict accordance with the
standards stipulated in the contract. In this process, the inner
and outer surfaces, the appearance of both ends, bending, set
length, outer diameter and Wall thickness will be checked one by
one. You can rest assured that all products you receive from us are
reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
Packing method
Wooden Pallet BOX,Standard Seaworthy Package,based on the customer's special requirement,etc
|
|
