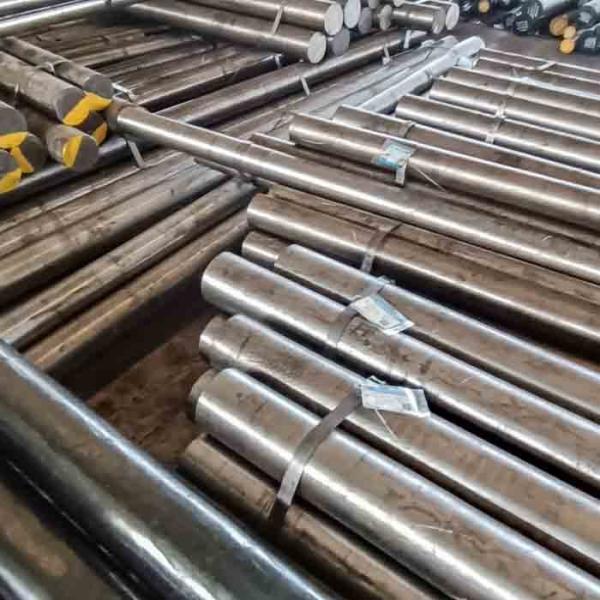

Alloy AM-355 Alloy Round Bar AISI 634 UNS S35500
Description
Alloy AM-355 Round Bar is a chromium-nickel-molybdenum stainless
steel, Alloy AM-355 Alloy Round Bar has good resistance to
atmospheric corrosion and to a number of other mild chemical
environments.
All of Alloy AM-355 Alloy Round Bar AISI 634 UNS S35500 conform to Military standard, nuclear power. 100% Ultrasonic test
ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Round bar / Wire rod (Diameter): 5.5mm to 800mm
Square bar / Flat bar: 3mm to 800mm
Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Products Details
Alloy AM-355 Alloy Round Bar AISI 634 UNS S35500
| Chemical Composition (weight%): | |
| C | 0.10 ~ 0.15 |
| Si | ≤ 0.50 |
| Mn | 0.50 ~ 1.25 |
| P | ≤ 0.040 |
| S | ≤ 0.030 |
| Cr | 15.0 ~ 16.0 |
| Ni | 4.00 ~ 5.00 |
| Mo | 2.50 ~ 3.20 |
| Nb + Ta | 0.15 ~ 0.50 |
| Mechanical Properties Under Final Heat Treatment: | |
| Condition: Heat treatment - Austenitized at 900℃ . Oil quenched and air cooled, or salt quenched at 205 ~ 220 ℃ for 10 minutes and air cooled | |
| TS, σb/≥MPa | 1170 |
| YS, σ0.2≥/MPa | 1070 |
| EL, δ 5≥(％) | 12.0 |
| Reduction of area, ф ≥ (％) | 25.0 |
| Hardness HB (HRC) | 37 |
Applications:
Alloy AM-355 Round Bar is a chromium-nickel-molybdenum stainless
steel which has been used for gas turbine compressor components
such as blades, rotors and shafts. Alloy AM-355 Alloy Round Bar has
good resistance to atmospheric corrosion and to a number of other
mild chemical environments.
Alloy AM-355 Alloy Round Bar AISI 634 UNS S35500
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical
composition of Alloy AM-355 Alloy Round Bar AISI 634 UNS S35500 and test the finished products in strict accordance with the
standards stipulated in the contract. In this process, the inner
and outer surfaces, the appearance of both ends, bending, set
length, outer diameter and Wall thickness will be checked one by
one. You can rest assured that all products you receive from us are
reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
Packing method
Wooden Pallet BOX,etc
|
|
