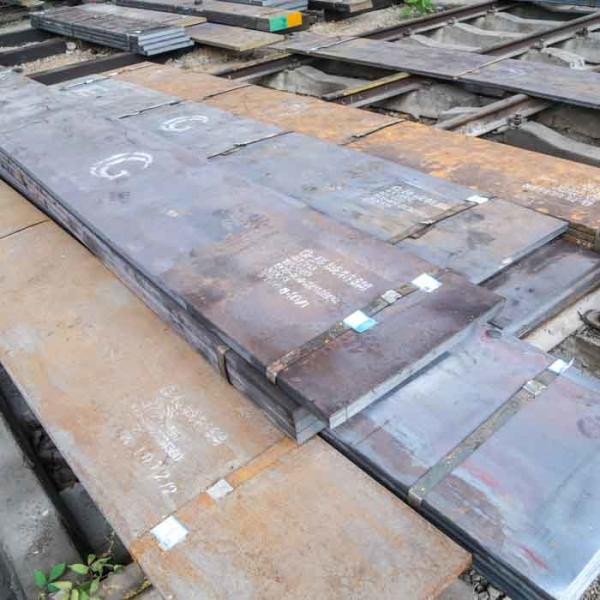

ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200
Q+T
Description
ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200
Q+T is a hardenable martensitic stainless steel which is being
widely used for high temperatures up to 1200°F. It is capable of
being heat treated to various high strength levels.
All of ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200
Q+T conform to Military standard, nuclear power. 100% Ultrasonic test
SEP 1923 /GB/T 4162 /ASTM E2375 /SAE AMS 2154 /EN 10228-3.
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Products Details
ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200 Q+T
Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): 0.20 ~ 0.25 Si (％): ≤ 0.50 Mn (％): 0.50 ~ 1.00 P (％)≤: 0.025 S (％)≤: 0.015 Cr (％): 11.0 ~ 12.5 Ni (％): 0.50 ~ 1.00 Mo (％): 0.90 ~ 1.25 W (％): 0.90 ~ 1.25 V (%): 0.20 ~ 0.30 Cu (%): 0.50 max. | Condition of heat treatment: Annealed Tensile strength, TS, σb ≥/MPa: - Yield strength, YS, σ0.2 ≥/MPa:- Elongation, EL, δ ≥(％): - Reduction of area, RA, ф ≥(％): - Hardness | HRS: ≤248 Condition of heat treatment: HT 1022℃ ~ 1050℃ air or oil cooled, ≥620℃ X 2H, tempered Tensile strength, TS, σb ≥/MPa: 965 Yield strength, YS, σ0.2 ≥/MPa: 760 Elongation, EL, δ ≥(％): 13.0 Reduction of area, RA, ф ≥(％): 30.0 Hardness | HRS: 302 ~ 352 Condition of heat treatment: H 1022℃ ~ 1050℃ air or oil cooled, ≥677℃ X 2H, tempered Tensile strength, σb ≥/MPa: 825 Yield strength, σ0.2 ≥/MPa: 585 Elongation, δ ≥(％): 17.0 Reduction of area, ф ≥(％): 35.0 Hardness under heat treatment | HRS: 241 ~ 285 |
Applications:
ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200
Q+T used most often in the Aircraft parts, Steam and gas turbine
components, High heat components, Rotors, etc.
ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200 Q+T
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical
composition of ASTM Grade 422 Stainless Steel Sheets Plates AISI 422 UNS S42200
Q+T and test the finished products in strict accordance with the
standards stipulated in the contract. In this process, the inner
and outer surfaces, the appearance of both ends, set length,
bending, outer diameter and Wall thickness will be checked one by
one. You can rest assured that all products you receive from us are
reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1000KG.If you want to place an order as the
start of our cooperation, we can accept smaller quantities at the
first time. Of course, after the start, We will have more stable
and long-term cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
FedEx/DHL/UPS accounts can be used for sampling, and the transportation cost is borne by you.
|
|
