| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | FV520B |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 80000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 6-7 days Production lead time: 50-60days |

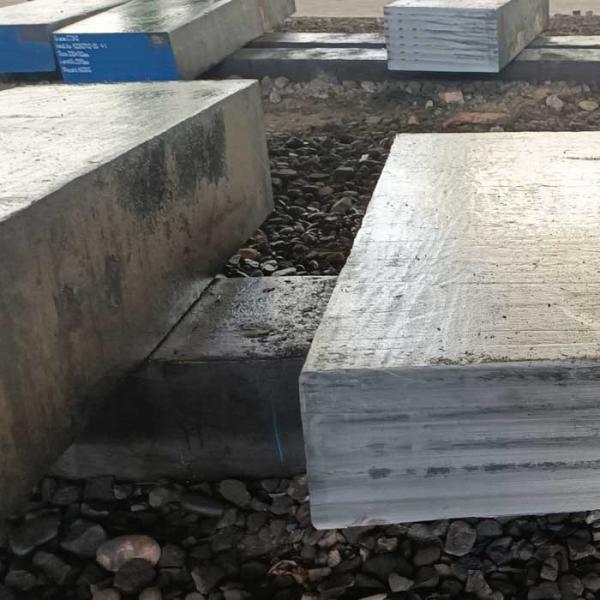

FV520B Stainless Steel Flat Bar
Description
FV520B has bigger attrition to intergranular and pitting bane that added precipitation hardening grades. FV520B offers acceptable bane resistance, weldability and is able of getting accustomed by low temperature treatment. With bane attrition commensurable to 304 stainless it is about acclimated in industry and abyssal environments area acerbic bulk is low.
All of AISI 633 Metal UNS S35000 Stainless Steel Flat Bar refined Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SEP 1923 /GB/T 4162 /SAE AMS 2154 /EN 10228-3.
Products Details
| Chemical Composition (weight%): | C (％): ≤ 0.070 Si (％): ≤ 0.70 Mn (％): ≤ 1.00 P (％)≤: 0.040 S (％)≤: 0.015 Cr (％): 13.0 ~ 15.0 Ni (％): 5.00 ~ 6.00 Mo (％): 1.20 ~ 2.00 Cu (％): 1.20 ~ 2.00 Nb + Ta (%): 0.15 ~ 0.60 |
| Mechanical Properties Under Final Heat Treatment: | Thickness/≤mm: 100 Condition of thermal treatment: AT (Solution treatment) Hardness ≤HBS: 360 Yield strength σ0.2≥/MPa: - Tensile strength σb/MPa: ≤1200 Elongation δ ≥(％): - Elongation δ(transversal )≥(％): - Impact absorbing power Akv≥/J : - Condition of thermal treatment: P930 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 720 Tensile strength σb/MPa: 930~1100 Elongation δ ≥(％): 15 Impact absorbing power Akv≥/J : 40 Condition of thermal treatment: P1000 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 860 Tensile strength σb/MPa: 1000~1200 Elongation δ ≥(％): 10 Impact absorbing power Akv≥/J : - Condition of thermal treatment: P1070 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 1000 Tensile strength σb/MPa: 1070~1270 Elongation δ ≥(％): 10 Impact absorbing power Akv≥/J : - |
Applications:
FV520B Stainless Steel Flat Bar used most often in the pump shafts, impellers, fasteners, fans, petrochemical, marine and nuclear engineering, and aircraft components such as steam turbine blades, etc.
FV520B Stainless Steel Flat Bar FV520B Applications
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of FV520B Stainless Steel Flat Bar FV520B refined Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends etc and Wall thickness will be checked one by one.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
|
