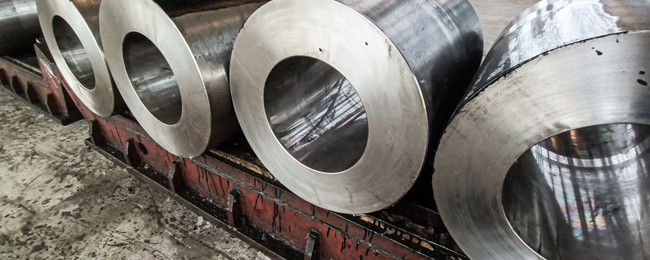

X22CrMoV12-1 Steel Forging Parts 1.4923 Round Bar X22CrNiMoV12-12 Flat Bar
Description
Our company provides X22CrMoV12-1 Steel Forging Parts 1.4923 Round Bar X22CrNiMoV12-12 Flat Bar. All of X22CrMoV12-1 Steel Forging Parts 1.4923 Round Bar X22CrNiMoV12-12 Flat Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
X22CrMoV12-1 Steel Forging Parts 1.4923 is a stainless heat resisting chromium steel with molybdenum additive, which is used as a standard for steel components in steam turbines and high-temperature resistant screws.
Due to the addition of vanadium it has an increased creep rupture
strength. Scale oxide resistance up to approximately 600°C. The
corrosion resistance in natural environment is limited due to the
relatively low chromium content.
X22CrMoV12-1 Steel Forging Parts 1.4923 is steam resistant. It is
mainly used in turbine construction, aerospace and for pressure and
steam boilers.
| Chemical Composition (weight%): | |
| C | 0.18 ~ 0.24 |
| Si | ≤ 0.50 |
| Mn | 0.40 ~ 0.90 |
| P | ≤ 0.025 |
| S | ≤ 0.015 |
| Cr | 11.0 ~ 12.5 |
| Ni | 0.30 ~ 0.80 |
| Mo | 0.80 ~ 1.20 |
| V | 0.20 ~ 0.35 |
| Mechanical Properties Under Final Heat Treatment: | |
Condition: solution treatment | |
| Yield strength σ0.2≥/MPa | 600 |
| Tensile strength σb/MPa | 700 ~ 850 |
| Elongation δ ≥(％) | 14.0 |
| Non-scale temperature in Air | 600℃ |
STANDARD: EN 10302: 2008 Creep resisting steels, nickel and cobalt alloys EN 10269: 1999 Steels and nickel alloys for fasteners with specified elevated and/or low temperature properties EN 10088-1: 2005 Stainless steels. List of stainless steels.
Applications:
Heat-treatable high-temperature steel with good thermal resistance up to 580 °C and scaling resistance up to 600 °C Application in reactor engineering, chemical industry as well as in turbine, steam boiler and pipeline construction and for screws and nuts.
Equivalent Grade
X22CrMoV12-1
X22CrNiMoV12-1
1.4923
X22CrMoV12-1 Steel Forging Parts 1.4923
