| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | PH13-8Mo, ASTM XM-13, UNS S13800 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 90000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-7 days Production lead time: 45-55days |

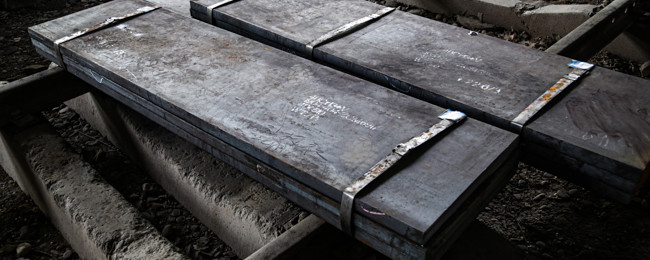

UNS S13800 Stainless Steel Sheets Plates Shot blasted
Description
Our company provides UNS S13800 Stainless Steel Sheets Plates Shot blasted.
All of UNS S13800 Stainless Steel Sheets Plates Shot blasted conform to Military standard, nuclear power. 100% Ultrasonic test
SEP 1923/SAE AMS 2154 /EN 10228-3 /GB/T 4162 /ASTM E2375 .
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Square bar / Flat bar: 3mm to 800mm
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
Products Details
UNS S13800 Stainless Steel Sheets Plates Shot blasted
| Chemical Composition (weight%): | C (％): ≤ 0.05 |
| Si (％): ≤ 0.10 | |
| Mn (％): ≤ 0.20 | |
| P (％)≤: 0.010 | |
| S (％)≤: 0.008 | |
| Cr (％): 12.3 ~ 13.2 | |
| Mo (％): 2.00 ~ 2.50 | |
| Al (％): 0.90 ~ 1.35 | |
| Ni (％): 7.50 ~ 8.50 | |
| Others (%): N ≤ 0.01 | |
| Mechanical Properties Under Final Heat Treatment: | Solution treatment temperature and cooling ways: 1050 +/-15℃ Ageing teated: H1000, 540℃, 4h, air cooling Tensile strength, σb≥/MPa: 1410 Yield strength, σ0.2≥/MPa: 1312 Elongation, δ≥(％): 10.0 Hardness |HRC: 43 Ageing teated: H1025, 550℃, 4h, air cooling TS, σb≥/MPa: 1275 YS, σ0.2≥/MPa: 1200 EL, δ≥(％): 11.0 Hardness |HRC: 41 |
Applications:
High quality UNS S13800 Stainless Steel Sheets Plates Shot blasted
used most often in the Pins,Valves, Shafts, Screws and bolts,
Missile components, Fittings and fasteners, Injection molding
equipment, Nuclear and petrochemical industry equipment.
UNS S13800 Stainless Steel Sheets Plates Shot blasted
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical
composition of UNS S13800 Stainless Steel Sheets Plates Shot blasted and test the finished products in strict accordance with the
standards stipulated in the contract. In this process, the inner
and outer surfaces, the appearance of both ends, set length,
bending, outer diameter and Wall thickness will be checked one by
one. You can rest assured that all products you receive from us are
reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1000KG.If you want to place an order as the
start of our cooperation, we can accept smaller quantities at the
first time. Of course, after the start, We will have more stable
and long-term cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
FedEx/DHL/UPS accounts can be used for sampling, and the transportation cost is borne by you.
|
