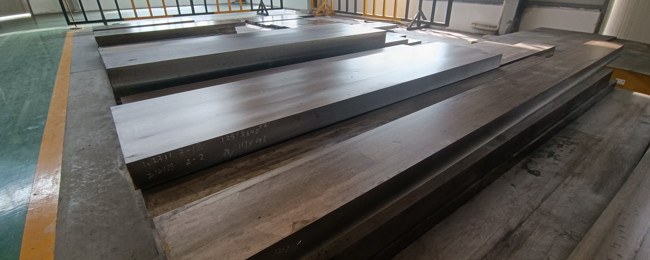

AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar
Description
Our company provides AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar.AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar-15Cr - 6Ni - 1.5Cu - 0.3Nb Fe Alloy.
High temperature alloy steel
| Chemical Composition (weight%): | |||||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | Nb | V | N |
0.03 ~ 0.05 | 0.20 ~ 0.50 | 0.30 ~ 0.80 | ≤ 0.020 | ≤ 0.005 | 14.0 ~ 16.0 | 6.20 ~ 6.80 | 0.60 ~ 1.00 | 1.35 ~ 1.75 | 8 X C ~ 15 X C | ≤ 0.10 | ≤ 0.030 |
| Al | Ag | Pb | Sn | ||||||||
≤ 0.030 | ≤ 0.005 | ≤ 0.005 | ≤ 0.10 | ||||||||
| Mechanical Properties Under Final Heat Treatment: | |||||
Condition of heat treatment: Solution and ageing (620 Deg.C) | |||||
| Tensile strength, σb≥/MPa | Yield strength, σ0.2≥/MPa | Elongation, δ≥(％) | Reduction of area, ф ≥(％) | Hardness | HBW | Impact strength, Charpy V |
| 860 | 585 | 15.0 | 55.0 | 269 ~ 321 | 65J min. |
Applications:
AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar-Chemical equipment,Mechanical parts used in the condition of corrosion resistance,Bolt and nut,Pressure vessel.
ASTM XM-13 Stainless Steel Flat Bar ASTM XM-13 Flat Bar ASTM XM-13 Bar.
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of AMS 5773 Alloy Steel Flat Bar AMS 5773 Stainless Steel Flat Bar AMS 5773 Flat Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
