| Brand Name : | ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP |
| Model Number : | DIN 24CrMoV5-5,1.7733 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 200000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 4-7 days Production lead time: 30-50 days |

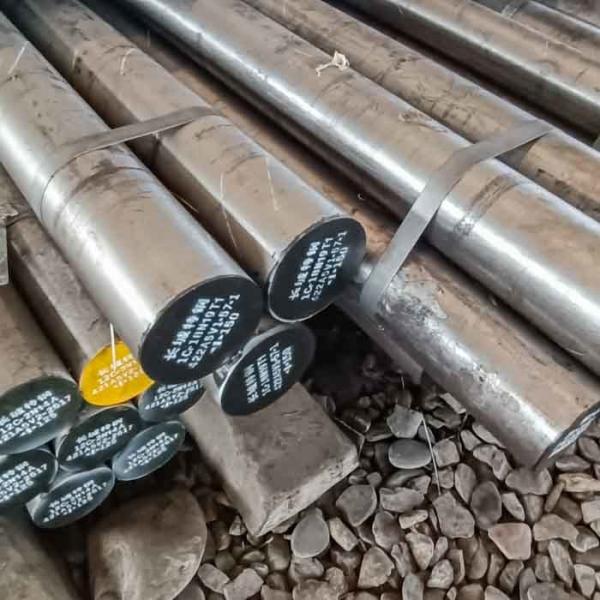

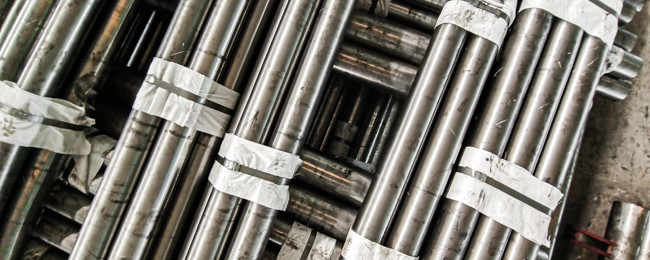

DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar
Description
Our company provides DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar.All of DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar conform to Military standard, nuclear power. 100% Ultrasonic test.
Products Details
DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar.
| Chemical Composition (weight%): | C (％): 0.20 ~ 0.28 |
| Si (％): 0.15 ~ 0.35 | |
| Mn (％): 0.30 ~ 0.60 | |
| P (％)≤: 0.035 | |
| S (％)≤: 0.035 | |
| Cr (%): 1.20 ~ 1.50 | |
| Ni (%): ≤ 0.60 | |
| Mo (%): 0.50 ~ 0.60 | |
| V (％): 0.15 ~ 0.25 | |
| Mechanical Properties Under Final Heat Treatment: | Mechanical property, TS ≥|σb/MPa: 690 ~ 830 |
| Mechanical property, YS ≥|σs/MPa: 540 | |
| Mechanical property, EL ≥|δ5(%): 17.0 | |
| Mechanical property, RA ≥|Akv /J: 55.0 | |
| Hardness after annealed HBW: 205 ~ 250 | |
| Hot working temperature /℃: 1100~850 | |
| Heat treatment temperature/℃|annealing /℃: 650～740 | |
| Heat treatment temperature/℃|quenching /℃: 900～950 Oil or Air cooled | |
| Heat treatment temperature/℃|tempering /℃: 680～740 |
DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar may be furnished in one of the following conditions: stress relieving; annealing; solution treatment; solution treatment and ageing; normalizing; normalizing and tempering; or quenching and tempering.
Equivalent Grade:
DIN 24CrMoV5-5 DIN 17210(1986)
1.7733
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of DIN 24CrMoV5-5 1.7733 Structural Steel Round Bar DIN 24CrMoV5-5 Round Bar 1.7733 Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
