Quality Solutions. Trusted Partners.
4 Years
| Ask Lasest Price | |
| Brand Name : | ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP |
| Model Number : | ASTM 4320H,UNS S43200,815H17,1.6566 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | 2000-2200 USD/Ton |
| Payment Terms : | T/T |
| Supply Ability : | 1100000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 3-9 days Production lead time: 30-55 days |

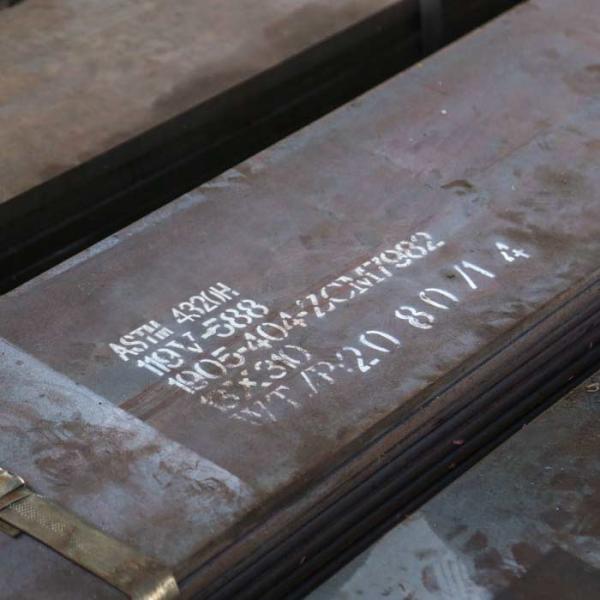

ASTM 4320H Structural Steel Sheets Plates S43200 1.6566 Cold rolled steel strip
Description
Our company provides ASTM 4320H Structural Steel Sheets Plates UNS S43200 Cold rolled steel strip 815H17 ASTM A304-2004
Packing details:Products are well packed and clear labeled according to the regulations and customer's requests.Intact packages are able to avoid any damage which might otherwise be caused during storage or transportation.
Products Details
ASTM 410 Stainless Steel Sheets Plates UNS S41000 Hot rolled steel strip ASTM A959-2004
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): 0.17 ~ 0.23 Si (%): 0.15 ~ 0.35 Mn (％): 0.40 ~ 0.70 P (％)≤: 0.025 S (％)≤: 0.025 Cr (%): 0.35 ~ 0.65 Mo (%): 0.20 ~ 0.30 Ni (%): 1.55 ~ 2.00 | Heat treatment temperature /normalizing: 930 ℃ Heat treatment temperature /quenching: 930 ℃ |
Applications:
Alloy structural steels are widely used in the filed of ship,
vehicle, airplane, guided missile, weapons, railway, bridges,
pressure vessel, machine tools, mechanical components with a bigger
sectional size and so on.
Power generation – turbine fasteners – boiler support rods
Process plant – fasteners
Mechanical gears, gear shaft, main axis, valve rods
Mechanical parts - connecting rods, bolts and nuts
Multidiameter shaft
| Technical Standard | Equivalent Grade |
| ISO 683/18(1996) | 18CrNiMo7H |
| JIS G4052(2003) | SNCM420H |
| KS D3752(1995) | SNCM420H |
| DIN EN10084(1998) | 20CrNiMo2-2/1.6566 |
| NF A35-565(1994) | 20CrNiMo7 |
| BS 970-1(1996) | 815H17 |
| ASTM A304(2004) | 4320H/H43200 |
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
|
