| Brand Name : | PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL |
| Model Number : | ASTM F5,ASTM T5 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 100000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 2-7 days Production lead time: 35-55days |

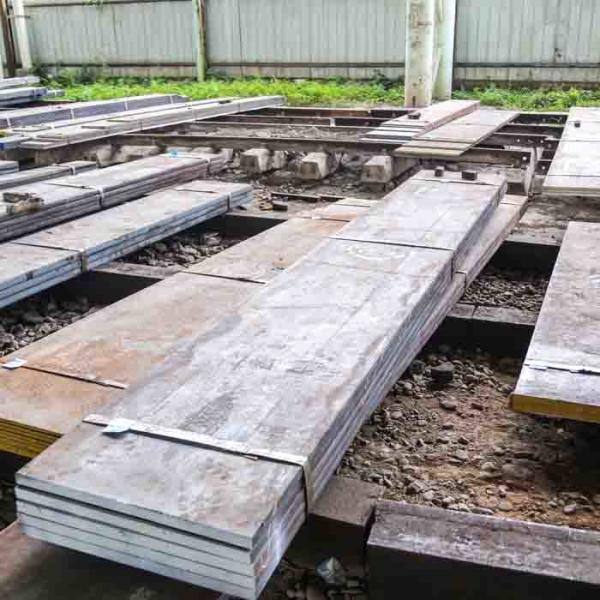

DIN X15CrMo5-1 1.7390 Structural Steel Plates X15CrMo5-1 Structural Steel 1.7390 Plates
Description
Our company provides ASTM F5 ASTM T5 Structural Steel Plates ASTM F5 Structural Steel ASTM T5 Plates.All of ASTM F5 ASTM T5 Structural Steel Plates ASTM F5 Structural Steel ASTM T5 Plates conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm;ASTM F5 ASTM T5 Structural Steel Plates ASTM F5 Structural Steel ASTM T5 Plates-Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
Products Details
ASTM F5 ASTM T5 Structural Steel Plates ASTM F5 Structural Steel ASTM T5 Plates-5Cr- 0.5Mo Alloy steel
| Chemical Composition (weight%): | |||||||
| C (％): ≤ 0.15 | Mn (％): 0.30 ~ 0.60 | Si (％): ≤ 0.50 | P (％)≤: 0.030 | S (％)≤: 0.030 | Cr (%): 4.00 ~ 6.00 | Mo (%): 0.44 ~ 0.65 | Mo (％): ≤ 0.60 |
| Mechanical Properties Under Final Heat Treatment: | ||||
Tensile strength, σb/≥ MPa: 485 | Yield strength, σ0.2/MPa: 275 | Elongation, δ ≥(％): 20.0 | Reduction of area, ф ≥ (％): 30.0 | Hardness via heat treatment / HBW: 143 ~ 217 |
Equivalent Grade:
ASTM F5 ASTM A182/A182M(2004)
ASTM T5 ASTM A213/A213M(2004)
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of ASTM F5 ASTM T5 Structural Steel Plates ASTM F5 Structural Steel ASTM T5 Plates and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1000 KG. However, if you want to place an
order as the start of our cooperation, we can accept smaller
quantities at the first time. Of course, after the start, we will
have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
