| Brand Name : | ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP |
| Model Number : | DIN X19CrMoNbVN11-1 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | 2600-3600 USD/Ton or Negotiations |
| Payment Terms : | T/T |
| Supply Ability : | 100000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 7-10 days Production lead time: 45-60 days |

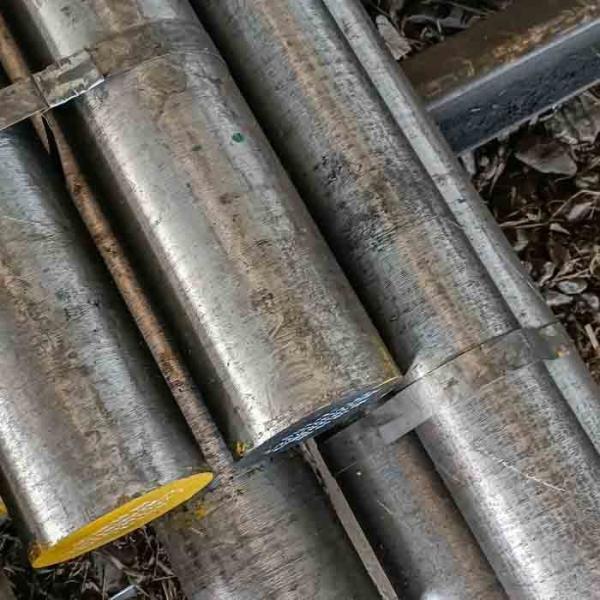

X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar
Description
Our company provides X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar ASTM A959-2004.
All of X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar ASTM A959-2004 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar ASTM A959-2004
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): 0.17 ~ 0.23 Si (％): ≤ 0.50 Mn (％): 0.40 ~ 0.90 P (％)≤: 0.025 S (％)≤: 0.015 Cr (％): 10.0 ~ 11.5 Ni (％): 0.20 ~ 0.60 Mo (％): 0.50 ~ 0.80 Al (%): ≤ 0.020 V (%): 0.10 ~ 0.30 W (%): - Nb (%): 0.25 ~ 0.55 N (％): 0.05 ~ 0.10 B (%): ≤ 0.0015 | Hot forming temperature /℃: 1100～850 Heat treatment temperature /℃ | annealing: 750~850 Heat treatment temperature /℃ | quenching or solution: 1100 ~ 1150 air / oil Heat treatment temperature /℃ | tempering: 670~750 Heat treatment temperature /℃ | ageing: 630~670 Condition: heat treatment Mechanical property under room temperature |σb/MPa: 950~1150 Mechanical property under room temperature |σs≥/MPa: 780 Mechanical property under room temperature |δ5≥(％): 10 Mechanical property under room temperature |Akv(DVM): 24 Heat stability temperature/℃: 580 Non-scale temperature in air /℃: - |
Applications:
X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar ASTM A959-2004
Gas turbine
Turbine blade
Fuel nozzle
Heat treating fixture
Furnace muffle
Nuclear reactor
Turbine engine parts - mechanical gears, gear shaft, main axis,
blade
Mechanical parts - bolt and nut, fastener
Heat treatment furnace flask and components, especially in the
carbonization.
These materials must stand up to high heat, extreme oxidation
potential and recycling.
Equivalent Grade:
X19CrMoNbVN11-1
DIN 1.4913
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of X19CrMoNbVN11-1 Turbine Blade Steel X19CrMoNbVN11-1 Round Bar X19CrMoNbVN11-1 Flat Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
|
