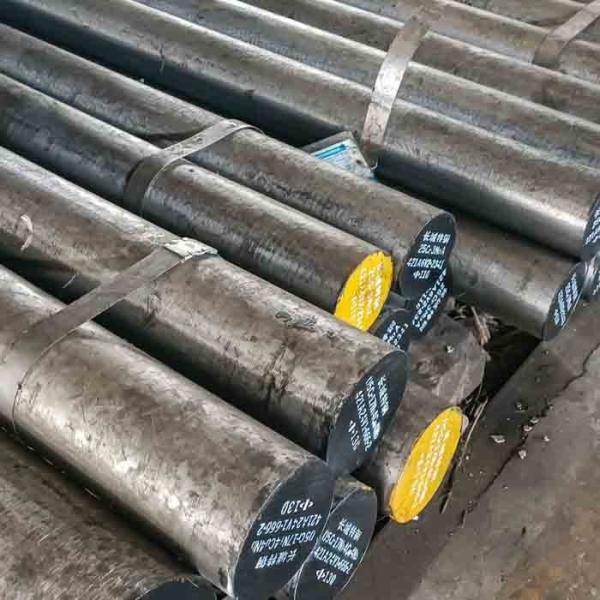

PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 S13800 1.4534 13-8Mo Bar
Description
Our company provides PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 Flat Bar UNS S13800 Bar 1.4534 13-8Mo.
All of PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 Flat Bar UNS S13800 Bar 1.4534 13-8Mo conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 Flat Bar UNS S13800 Bar 1.4534 13-8Mo
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): ≤ 0.05 Si (％): ≤ 0.10 Mn (％): ≤ 0.20 P (％)≤: 0.010 S (％)≤: 0.008 Cr (％): 12.3 ~ 13.2 Ni (％): 7.50 ~ 8.50 Mo (％): 2.00 ~ 2.50 Al (％): 0.90 ~ 1.35 N (%): ≤ 0.01 | Solution treatment temperature and cooling ways: 1050 +/-15℃ Ageing teated: H1000, 540℃, 4h, air cooling Tensile strength, σb≥/MPa: 1410 Yield strength, σ0.2≥/MPa: 1312 Elongation, δ≥(％): 10.0 Hardness |HRC: 43 Ageing teated: H1025, 550℃, 4h, air cooling Tensile strength, σb≥/MPa: 1275 Yield strength, σ0.2≥/MPa: 1200 Elongation, δ≥(％): 11.0 Hardness |HRC: 41 Ageing teated: H1050, 565℃, 4h, air cooling Tensile strength, σb≥/MPa: 1200 Yield strength, σ0.2≥/MPa: 1135 Elongation, δ≥(％): 12.0 Hardness |HRC: 40 Ageing teated: H1100, 595℃, 4h, air cooling Tensile strength, σb≥/MPa: 1030 Yield strength, σ0.2≥/MPa: 930 Elongation, δ≥(％): 14.0 Hardness |HRC: 34 Ageing teated: H1150, 620℃, 4h, air cooling Tensile strength, σb≥/MPa: 930 Yield strength, σ0.2≥/MPa: 625 Elongation, δ≥(％): 14.0 Hardness |HRC: 30 |
Applications:
PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 Flat Bar UNS S13800 Bar 1.4534 13-8Mo
Chemical equipment
Mechanical parts used in the condition of corrosion resistance
Bolt and nut
Pressure vessel
Equivalent Grade:
PH13-8Mo
XM-13
AMS 5629
UNS S13800
1.4534
13-8Mo
PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 Flat Bar UNS S13800 Bar 1.4534 13-8Mo
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of PH13-8Mo Stainless Steel Round Bar XM-13 Round Bar AMS 5629 S13800 1.4534 13-8Mo Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
