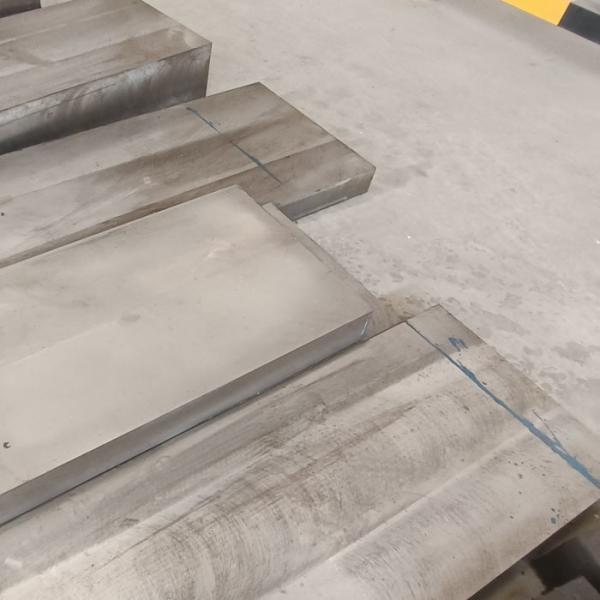

DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Flat Bar X6CrNiTi18-10 Flat Bar 1.4541 Bar
Description
Our company provides DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar.
All of DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar
| Chemical Composition (weight%): | C (％): ≤ 0.08 |
| Si (％): ≤ 1.00 | |
| Mn(％): 2.00 | |
| P(％): ≤ 0.045 | |
| S (％): ≤0.015 | |
| Cr (％): 17.0 ~ 19.0 | |
| Mo (％): - | |
| Ni (％): 9.00~12.00 | |
| Ti(％): 5C ~ 0.70 | |
| Mechanical Properties Under Room Temperature : | Condition: solution treatment |
| Thickness/mm: 160~250 | |
| Tensile strength, σb/MPa: 500~700 | |
| Yield strength, σ0.2≥/MPa: 190 | |
| Elongation, δ5 ≥(％): 40/30 | |
| Reduction of erea, ψ≥(％): 50 | |
| Impact strength, Akv ≥/J: 100/60 | |
| Hardness HBS30: 215max | |
| Mechanical Properties Above Room Temperature : | Heat treatment temperature and cooling methods|annealing: 750~800 furnace cooled |
| Heat treatment temperature and cooling methods|quenching: 1020~1050 oil cooled | |
| Heat treatment temperature and cooling methods|tempering: 100~200 | |
| Condition: aging | |
| High temperature yield strength σ0.2/MPa≥/MPa,at below temp/℃|100: - | |
| High temperature yield strength σ0.2/MPa≥/MPa,at below temp/℃|200: - | |
| High temperature yield strength σ0.2/MPa≥/MPa,at below temp/℃|300: - | |
| High temperature yield strength σ0.2/MPa≥/MPa,at below temp/℃|400: - | |
| High temperature yield strength σ0.2/MPa≥/MPa,at below temp/℃|500: - |
Applications:
DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar
Mechanical parts used in the condition of corrosion resistance
Bolt and nut
Pressure vessel
Medical equipment
Chemical equipments,etc
Equivalent Grade
DIN EN X6CrNiTi18-10 DIN EN 10088-1 2014
1.4541
DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of DIN EN X6CrNiTi18-10 1.4541 Stainless Steel Hot rolled Flat Bar X6CrNiTi18-10 Forged Flat Bar 1.4541 AOD Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
|
