| Brand Name : | ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP |
| Model Number : | Inconel 625,NiCr22Mo9Nb/2.4865,NCF625 |
| Certification : | SGS,TUV,BV,ISO,MTC |
| Price : | 20000-23000 USD/Ton |
| Payment Terms : | T/T |
| Supply Ability : | 200000KGS/Month |
| Delivery Time : | Ex-stock for delivery: 5-8 days Production lead time: 40-50 days |

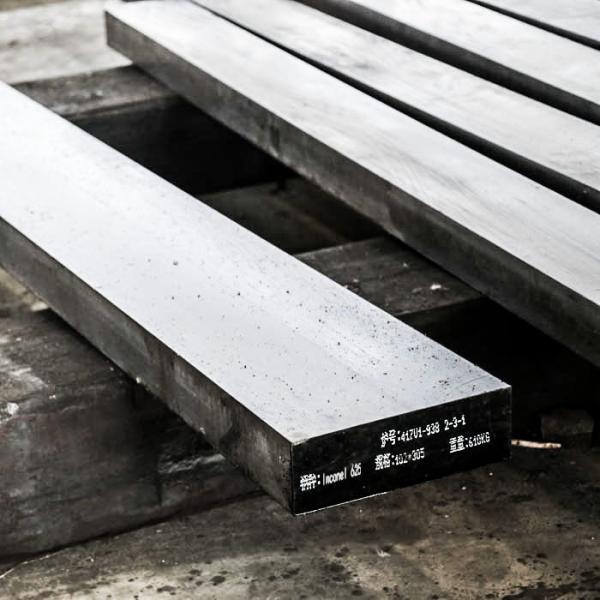

Inconel 625 Stainless Steel Sheets Plates Inconel 625 Superalloy Sheets Plates
Description
Our company provides Inconel 625 Stainless Steel Sheets Inconel 625 Superalloy Steel Flat Bar NiCr22Mo9Nb/2.4865 Cold working NCF625 DIN EN 10095
All of Inconel 625 Stainless Steel Sheets Inconel 625 Superalloy Steel Flat Bar NiCr22Mo9Nb/2.4865 Cold working NCF625 DIN EN 10095 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Packing details:
Products are well packed and clear labeled according to the regulations and customer's requests.
Intact packages are able to avoid any damage which might otherwise be caused during storage or transportation.
Products Details
Inconel 625 Stainless Steel Sheets Plates Inconel 625 Superalloy Steel Flat Bar NiCr22Mo9Nb/2.4865 Cold working NCF625 DIN EN 10095
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): ≤ 0.10 Si (％): ≤ 0.50 Mn (％): ≤ 0.50 P (％) ≤: 0.015 S (％) ≤: 0.015 Cr (％): 20.0 ~ 23.0 Ni (％): ≥ 58.0 Cu (％): - Al (%): ≤ 0.40 Ti (%): ≤ 0.40 Fe (%): ≤ 5.00 Mo (%): 8.00 ~ 10.0 Nb + Ta (%): 3.15 ~ 4.15 | Solution treated: ≥ 1090, rapid cooled Annealed: ≥ 870, rapid cooled Ageing treated: - Condition: A Tensile strength, σb/≥ MPa: 830 Yield strength, σ0.2/≥ MPa: 415 Elongation, δ ≥(％): 30 Hardness | HBW ≤: - Suitable size /mm: 100 Tensile strength, σb/≥ MPa: 760 Yield strength, σ0.2/≥ MPa: 380 Elongation, δ ≥(％): 30 Hardness | HBW ≤: - Suitable size /mm: 100 ~ 250 Condition: S Tensile strength, σb/≥ MPa: 690 Yield strength, σ0.2/≥ MPa: 275 Elongation, δ ≥(％): 30 Hardness | HBW ≤: - |
Superalloy is widely used to produce the high temperature
components for gas turbine in the field of aviation, naval vessels
and industry, such as turbine blade, guide blade, turbine disc,
high pressure compressor disc, combustor, and also production of
energy conversion devices, such as aerospace craft, rocket motor,
nuclear reactor, petrochemical equipments, coaly transforming and
so on. The alloy is usually produced by AOD / VOD /VIM followed by
electroslag refining (ESR) / VAR if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic
examination based on the different levels according to the buyers'
requirements.
Bars are usually supplied bright surface in the solution annealed
condition.
Final heat treatment - solution + Aged or Double aged.
| Technical Standard | Equivalent Grade |
| JIS G 4901(1999) | NCF 625 |
| KS D3532 (2002) | NCF 625 |
| DIN EN 10095(2005) | NiCr22Mo9Nb/2.4856 |
| NF EN 10095(2005) | NiCr22Mo9Nb |
| BS EN 10095(2005) | NiCr22Mo9Nb |
| Inconel 625 |
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of Inconel 625 Stainless Steel Sheets Plates and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
