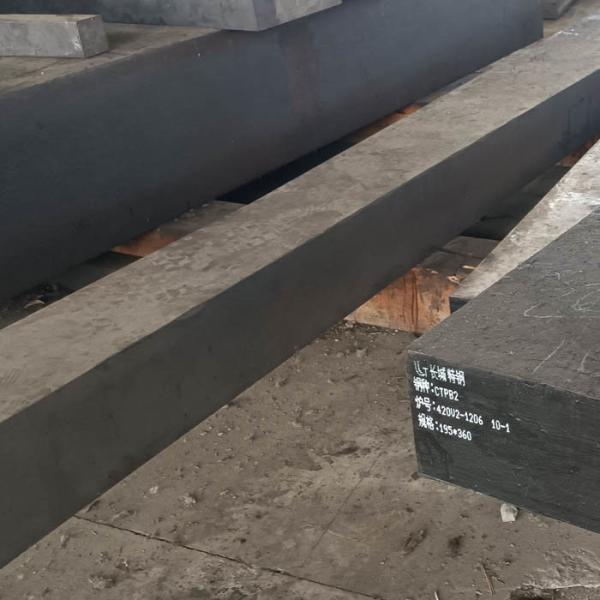

DIN X2CrNiMoCuWN25-7-4 W-Nr 1.4501 Stainless Steel UNS S31603 AISI 316L Flat Bar
Product Information
1.4501 stainless steel, also known as UNS S32760, is a super duplex
stainless steel with high strength and corrosion resistance. The
combination of these elements endows 1.4501 stainless steel with
excellent corrosion resistance, particularly suitable for marine
environments and chlorinated media.
1.4501 stainless steel also has excellent strength and can be used
for various high-strength applications such as shipbuilding and
offshore platforms. In addition, it also has good wear resistance
and heat resistance, and still performs well in high-temperature
and high-pressure environments.
Size Range
Round bar / Wire rod (Diameter):1.0 mm to 800 mm
Square bar / Flat bar: 1.0 mm to 800 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs
/donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T10.0 - 1000 mm X W10 - 1000 mm
X L100-1000 mm
Sheet steel via cold rolled: T5.0 - 10 mm X W3 - 1000 mm X L100 -
1000 mm
Steel strip via cold rolled: T5.0 - 10 mm X W5 - 1000 mm X L (or in
coil form)
Length: Fixed length or random length or based on the customer's
special requirement.
Chemical Composition and standard
X2CrNiMoCuWN25-7-4/1.4501 | UNS S32760 |
| DIN EN 10088-3-2014 | ASTM A 959-2004 |
C(％): ≤0.03 N(%): 0.20~0.30 W(%): 0.50~1.00 | C(％): ≤0.03 N(%): 0.20~0.30 W(%): 0.50~1.00 Cr+3.3Mo+16N(%): ≥4 |
X2CrNiMoCuWN25-7-4 / 1.4501 Mechanical Properties (Annealed)
Tensile strength,Rm/MPa: 730~930
Yield strength,Rp/MPa: ≥ 530
Elongation, A/%: ≥ 25
Reduction of area, ψ/%: --
Impact, KV /J: ≥100
Hardness/ HRC: ≤ 95
Applications
1.4501 stainless steel is a highly high-performance stainless steel material that can be used for various applications under extreme conditions, such as marine, chemical, petroleum, and natural gas fields.
