    W-Nr 2.4858 NiCr21Mo Steel Forging Piece N08825 Incoloy 825 Bar

    Ask Lasest Price
    Brand Name : PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
    Model Number : W-Nr 2.4610, NiMo16Cr16Ti, Hastelloy alloy C-4, UNS N06455
    Certification : SGS, TUV, BV, ISO, MTC
    Price : Negotiations
    Payment Terms : T/T
    Supply Ability : 50000KGS/Month
    Delivery Time : Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
    • Product Details
    • Company Profile

    W-Nr 2.4858 NiCr21Mo Steel Forging Piece N08825 Incoloy 825 Bar

    W-Nr 2.4858 NiCr21Mo Steel Forging Piece N08825 Incoloy 825 Bar


    Product Information


    W-Nr 2.4858 NiCr21Mo is a nickel-iron-chromium alloy with added molybdenum and copper. It has excellent resistance to reducing and oxidizing acids, stress corrosion cracking, and localized pitting and crevice corrosion, especially sulfuric and phosphoric acids


    Size Range


    Round bar / Wire rod (Diameter): 5.0 mm to 1000 mm

    Square bar / Flat bar: 8.0 mm to 500 mm

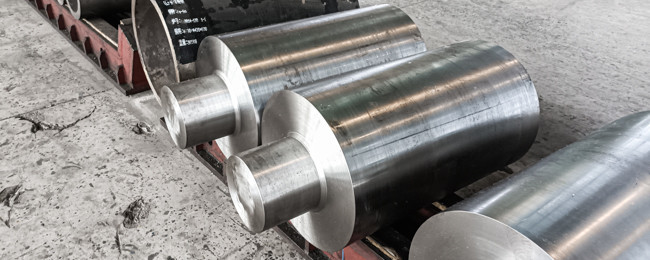

    Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.

    Heavy/middle plate via hot rolled: T5 - 200 mm X W3 - 1000 mm X L1000-12000 mm

    Sheet steel via cold rolled: T0.3 - 10 mm X W5 - 1000 mm X L300 - 1000 mm

    Steel strip via cold rolled: T0.3 - 10.0 mm X W10 - 500 mm X L (or in coil form)

    Length: Fixed length or random length or based on the customer's special requirement.


    Chemical Composition and standard


    NiCr21Mo/ W-Nr 2.4858

    BS NA16UNS N08825/Incoloy 825JIS NCF 825
    DIN 17744-2020

    BS 3076-1989

    ASTM B424-2011(R2016)JIS G 4901-2008


    C(%): ≤0.025
    Si(%): ≤0.5
    Mn(%): ≤1.0
    P(%)≤: 0.02
    S(%)≤: 0.015
    Cr(%): 19.5~23.5
    Ni(%): 38~46

    Mo(%): 2.5~3.5

    Cu(%): 0.5~3.0

    Ti(%): 0.6~1.2

    Co(%): ≤1.0

    Al(%): ≤0.2

    Fe(%): Remainder


    C(%): ≤0.05
    Si(%): ≤0.5
    Mn(%): ≤1.0
    P(%)≤: --
    S(%)≤: 0.015
    Cr(%): 19.5~23.5
    Ni(%): 38~46

    Mo(%): 2.5~3.5

    Cu(%): 1.5~3.0

    Ti(%): 0.6~1.2

    Ti(%): ≥20C

    Co(%): ≤2.0

    Al(%): ≤0.2

    Fe(%): Remainder


    C(%): ≤0.05
    Si(%): ≤0.5
    Mn(%): ≤1.0
    P(%)≤: --
    S(%)≤: 0.03
    Cr(%): 19.5~23.5
    Ni(%): 38~46

    Mo(%): 2.5~3.5

    Cu(%): 0.5~3.0

    Ti(%): 0.6~1.2

    Co(%): --

    Al(%): ≤0.2

    Fe(%): ≥22.0


    C(%): ≤0.05
    Si(%): ≤0.5
    Mn(%): ≤1.0
    P(%)≤: 0.03
    S(%)≤: 0.015
    Cr(%): 19.5~23.5
    Ni(%): 38~46

    Mo(%): 2.5~3.5

    Cu(%): 1.5~3.0

    Ti(%): 0.6~1.2

    Co(%): --

    Al(%): ≤0.2

    Fe(%): Remainder


    W-Nr 2.4858 NiCr21Mo Steel Forging Piece N08825 Incoloy 825 Bar

    NiCr21Mo W-Nr 2.4858 Mechanical Properties


    Tensile strength, σb/Mpa: ≥590

    Yield Point, σs/Mpa: ≥220

    Elongation, δ/%: ≥30

    Reduction of Area,ψ/%: --

    Hardness (HB): --


    Applications


    NiCr21Mo W-Nr 2.4858 is commonly used in chemical processing, nuclear fuel reprocessing, acid production, pickling equipment and other industries.
